Size: ?42mm
Brushless transmission planetary/rated current: ?1.3A
Rated torque: ?0.048N.M
Reduction ratio: ?3.7-307.54
Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

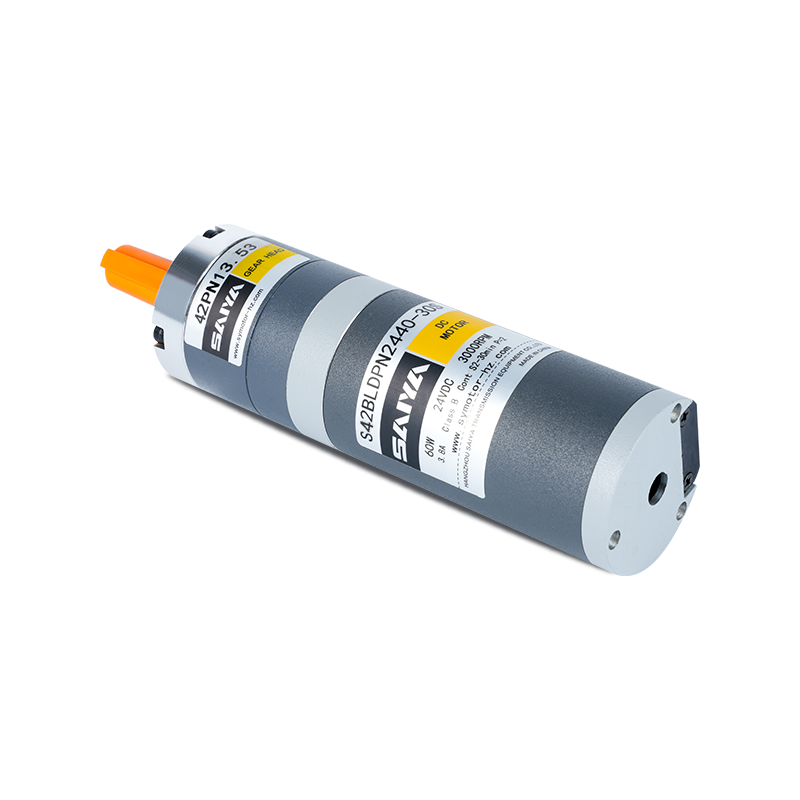

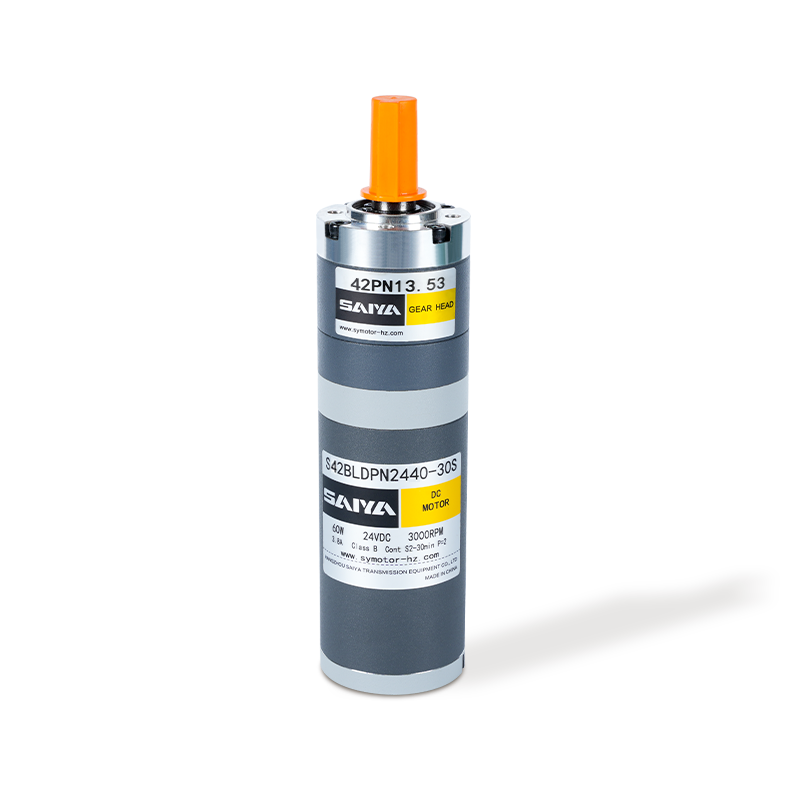

The 42mm brushless planetary motor is a high-efficiency motor product that is widely used in various scenarios requiring precision transmission. The rated current of this motor is 1.3A and the rated torque is 0.048N.M. It can provide stable and strong power output to meet the needs of various complex working environments.
The motor has a wide range of gear ratios, from 3.7 to 307.54. Users can choose the appropriate reduction ratio according to the specific application to achieve precise speed control and torque transmission. Its brushless design not only improves the life of the motor, but also greatly reduces the maintenance requirements and ensures long-term stable operation.
The 42mm brushless planetary motor performs particularly well in automation equipment, robots, medical equipment, and aerospace. Its high efficiency, low noise and high reliability make it an ideal choice for high-demand application scenarios. Whether in precision motion control or high-load transmission, this motor can provide performance. With its design and performance, this motor has become a popular transmission solution in the market.

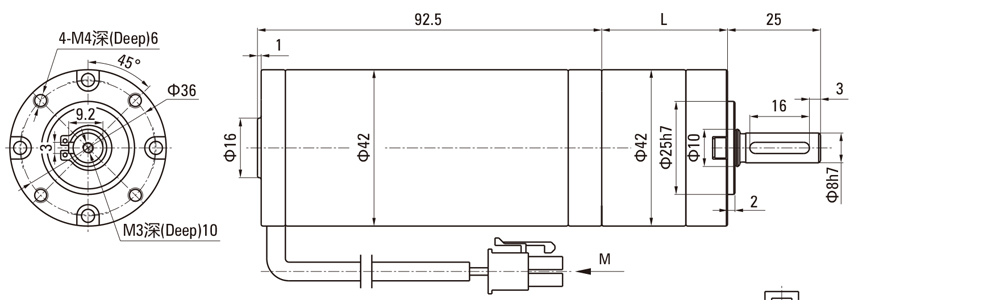

| Motor?Type | Gearbox?Mode | Gear?Ratio | Dimension?(mm) |
| S42BLDPN | 42ZPN□ | 3.65～8.63 | 33.8 |
| 13.53～58.22 | 47.4 | ||
| 67.08~392.98 | 61 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| U | V | W | GND | Hv | Hw | Hu | +Vcc |
| Motor?Type | Voltage | Rated?Power | Rated?Current | Rated?Speed | Rated?Torque | Grade?Protection |
| V | W | A | RPM | Nm | IP | |
| S42BLDPN2440-30S | 24 | 40 | 2.4 | 3000 | 0.127 | 20 |
| Ratio | 3.65 | 5.36 | 6.55 | B.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
| Output?shaft?speed(r/min) | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 88 | 67 | 52 | 45 | 37 |
| Allowable?torque(N.?m) | 0.42 | 0.61 | 0.75 | 0.99 | 1.4 | 1.95 | 2.54 | 2.89 | 3.5 | 4.61 | 6 | 6.24 | 7.54 |
| Reduction?stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
| Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 23161 | 301.68 | 392.98 | |||
| Output?shaft?speed(r/min) | 33 | 29 | 25 | 23 | 21 | 18 | 16 | 13 | 10 | 8 | |||
| Allowable torque(N.?m) | 8.49 | 9.55 | 11.06 | 11.87 | 13.51 | 15 | 15 | 15 | 15 | 15 | |||
| Reduction?stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
