Low Voltage Motor Parameters

Type

Gear Motor-torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box()within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

The speed is calculated by dividing the motor's synchronous speed by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N·m.

60 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

80 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

90 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

104 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

60 Series?Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.5kg / Gearhead: 0.48kg

Motor Model			Gearhead Model					Gear Ratio			Dimension
Z2BLD25-□GN			2GN□K					3~18			32
								25~200			41

Enter the gear ratio in the box(□)within the model name

Wrie Plug hole Corresponding Signal Explanation

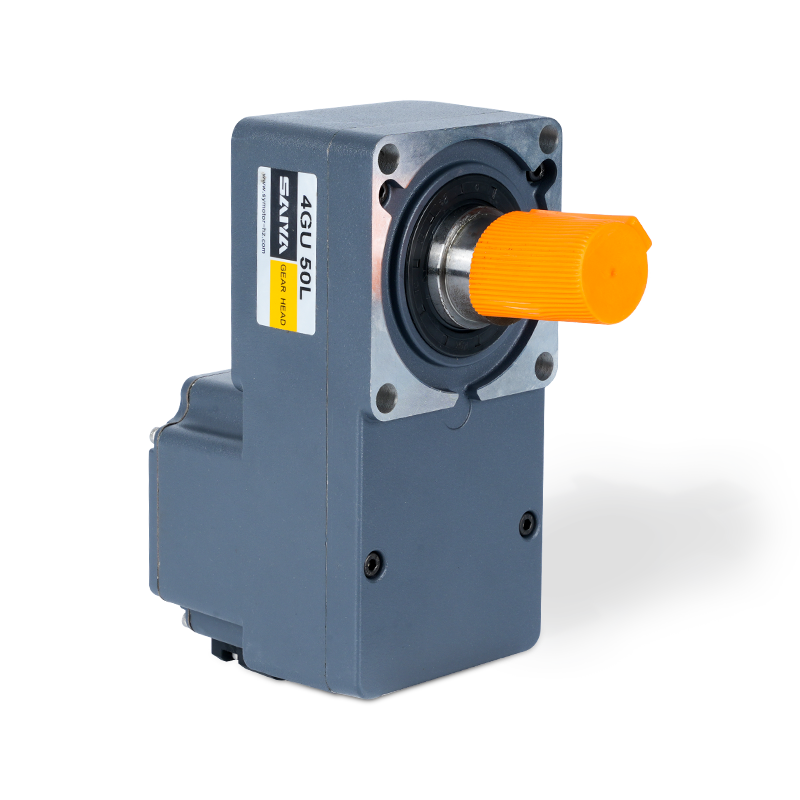

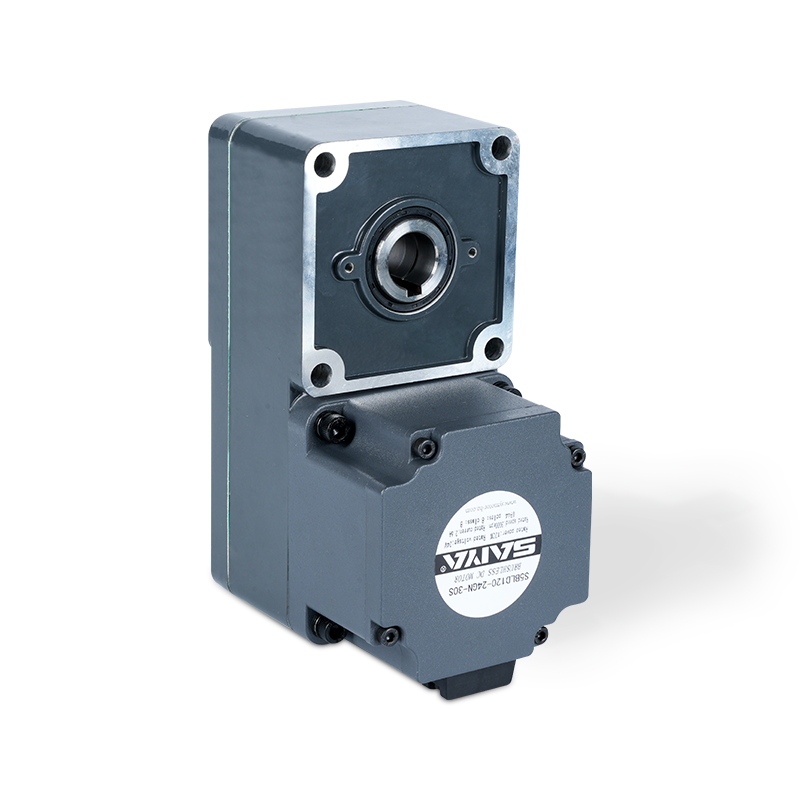

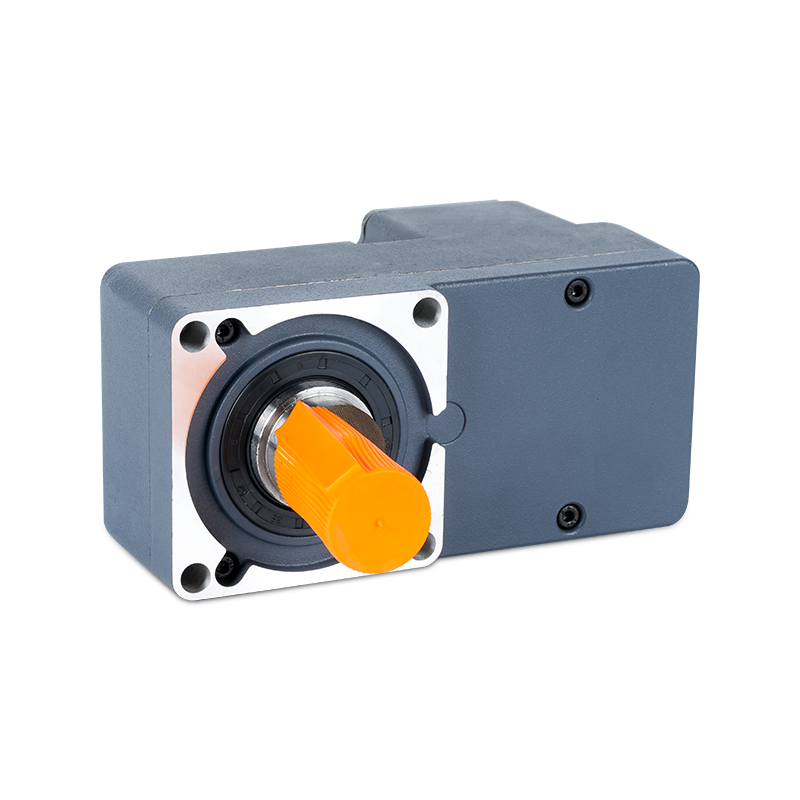

60 Pressure L Type Reducer

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight:Motor:0.9kg / Gearhead: 0.48kg

80 Series?Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.8kg / Gearhead: 0.8kg

Motor Model			Gearhead Model					Gear Ratio			Dimension
Z4BLD60-□GN			4GN□K					3~18			32
								25~200			41

Enter the gear ratio in the box(□)within the model name
