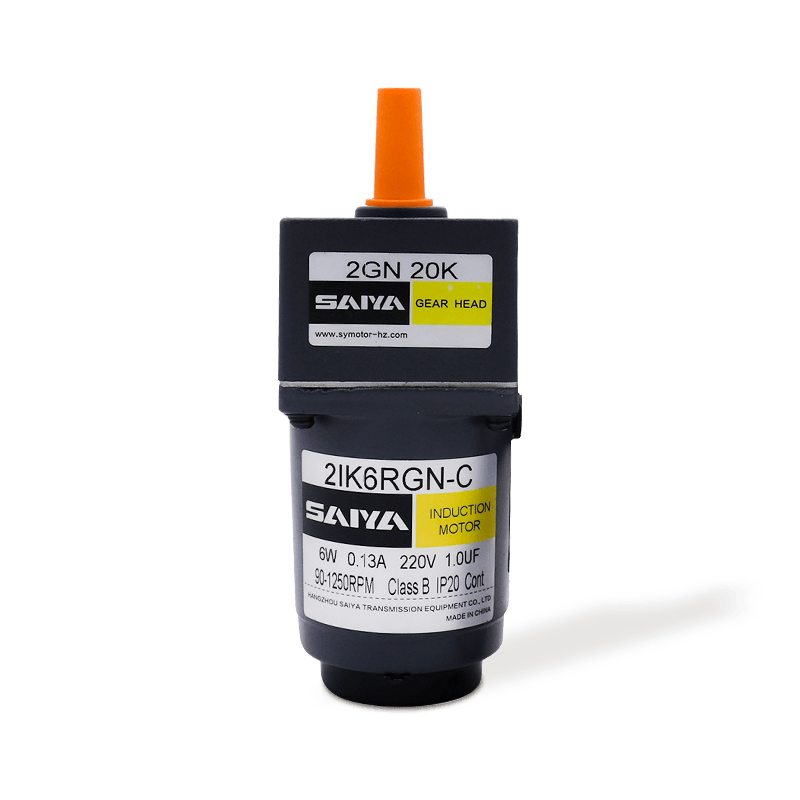

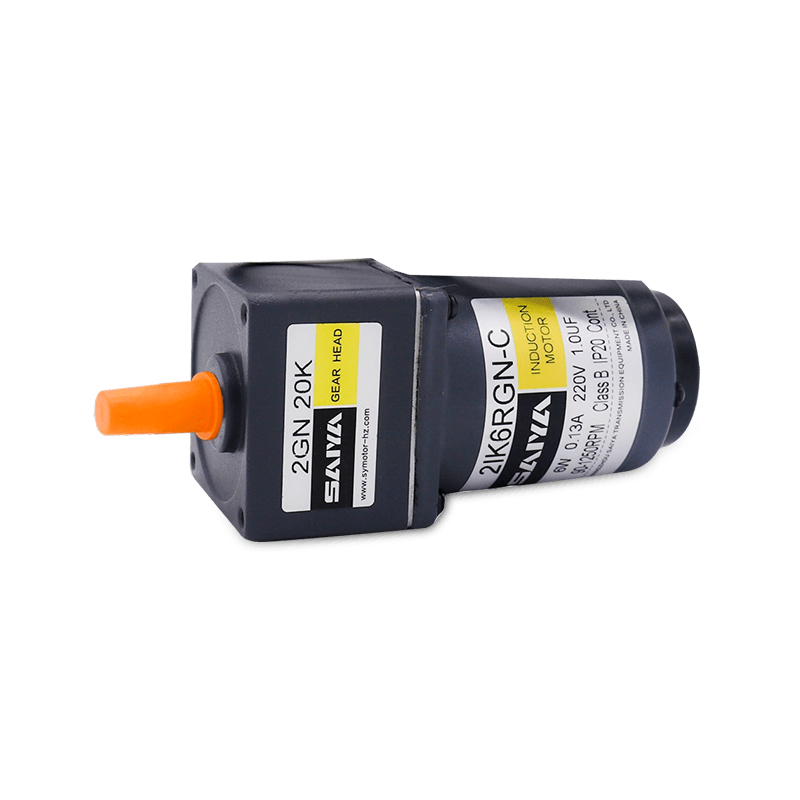

Specs??????Continuous Rating

When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.

Note:"-A"it means the voltage 110V,the assembly capacitor vaule it is according the labe.

Type

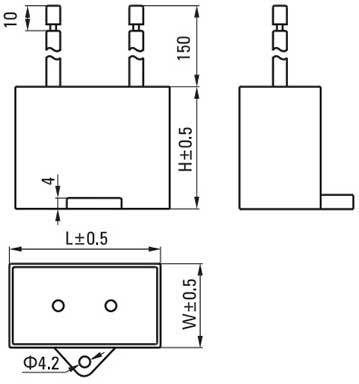

Formal Dimension Of Capacitor

Model		? Capacitor?Model	? ? L	? ? W	? ? H
Pinion?Shaft	Round?Shaft
2IK6GN-A	2IK6A-A	ZD35CFAUL	38	19.5	31
2IK6GN-E	2IK6A-E	ZD20CFAUL	36	15.0	25
2IK6GN-C	2IK6A-C	ZD08CFAUL	36	10.5	20

Note: Conventional capacitor is a lead wire type.Inserted 187#is optional

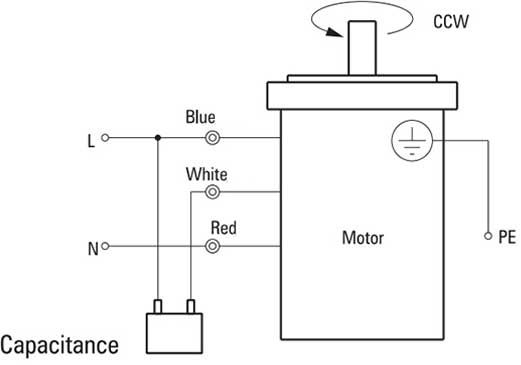

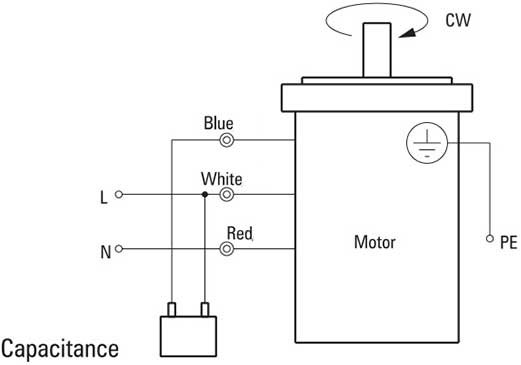

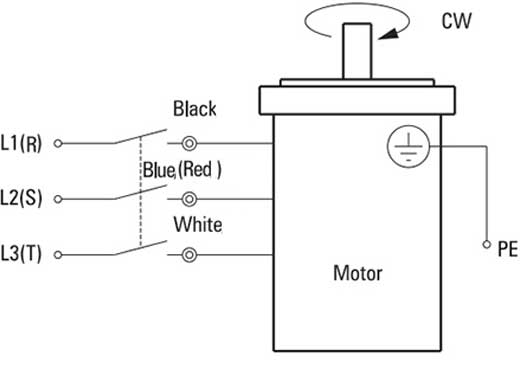

Wiring Diagram

The direction of motor rotation is as viewed from the shaft end of the motor.CW represents the clockwise direction, while CCW represents the counterclockwise direction.

The Name indicated in the list is the pinion shaft type, also valid for the equivalent round shaft type.

Note:

Change the direction of single-phase motor rotation only after bringing the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating, the motor may ignore the reversing command or change its direction of rotation after some delay.

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box (□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

The speed is calculated by dividing the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead (gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N-m.

Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

To Allow The Hoisting Of The Load Alow Axial Load

J Permissible Load Inertia J For Gearhead

→215 page→P215

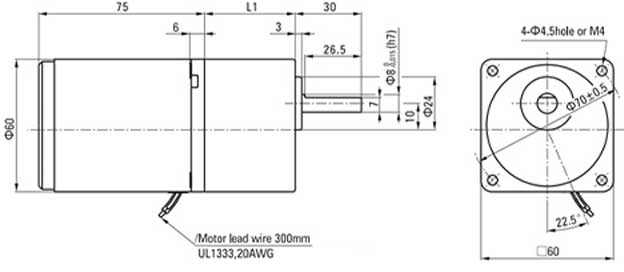

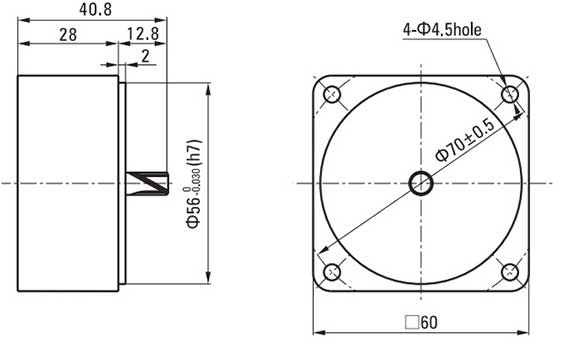

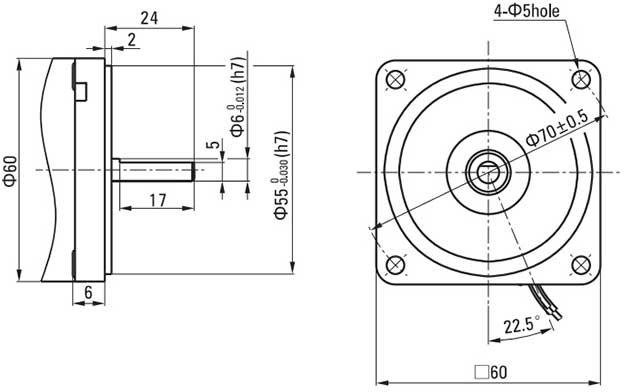

Dimensions (Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.75kg / Gearhead:0.4kg

Motor?Model	Gearhead Model	Gear Ratio	L1
2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3	2GN□K	3~200	41.5

Enter the gear ratio in the box (□)within the model name.

Gear ratio 3~18,short case is possible (L1=32)
