Brushed DC Gear Motors

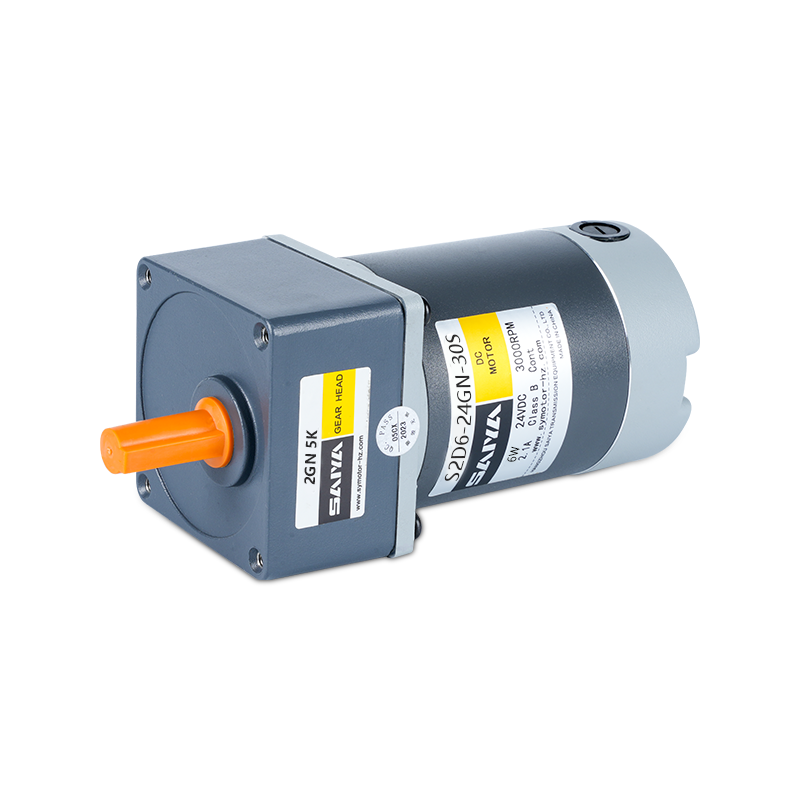

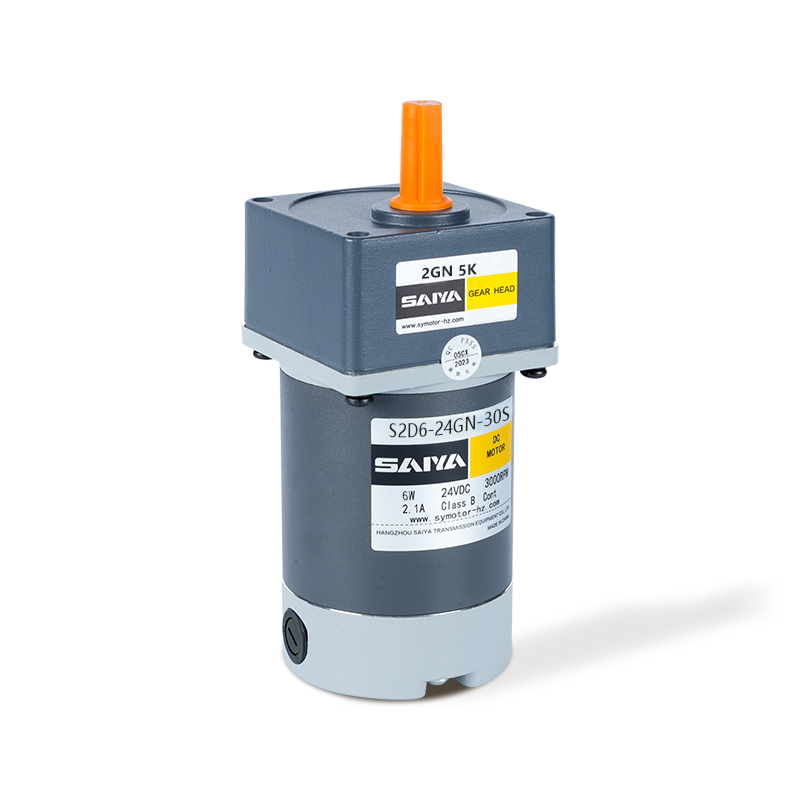

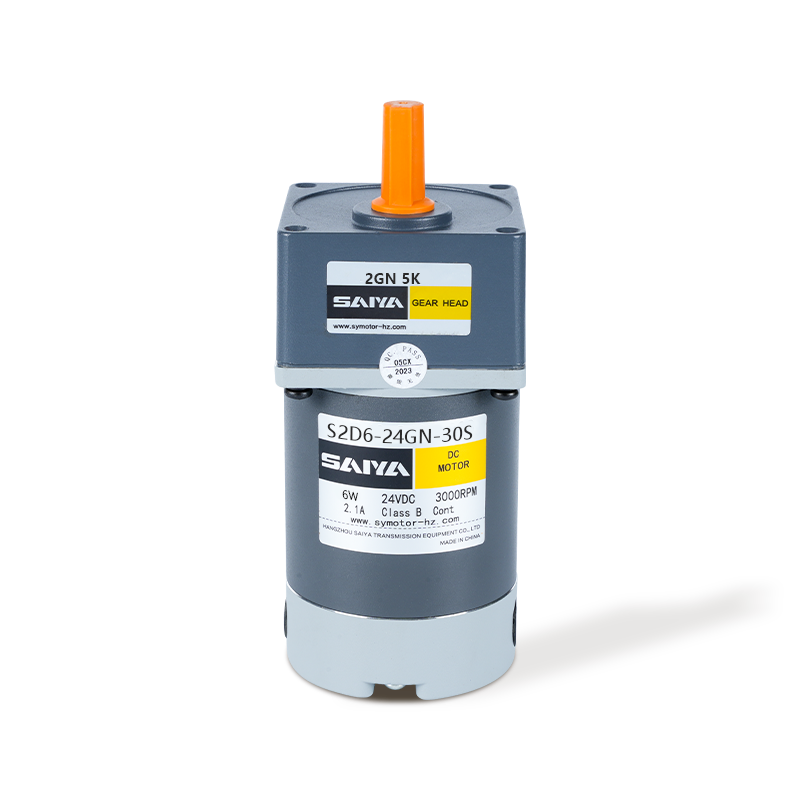

6W Brush DC Gear Motors

Voltage size: ?6W, 60mmx60mm

Operating voltage: ?12-90V

No load parameters: ?Speed 3000-3200rpm

Current used: ?0.2-0.6A

Load parameters: ?Rotational speed 2800-2950rpm

Current used: ?0.3-0.8A

Torque: ?19-20mN.M

PREV | No next article

+ Contact us + Catalogue Download Product Video

APPLICATION AREA

We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

Product Description

The 6W brush DC gbear motor is designed for efficiency and versatility, suitable for various applications. With a compact frame size of 60mm x 60mm, it fits seamlessly into tight spaces. The motor operates within a voltage range of 12-90V, making it adaptable to different power sources.

Under no-load conditions, the motor achieves a speed of 3000-3200 RPM and draws a current of 0.2-0.6A. When a load is applied, the speed slightly decreases to 2800-2950 RPM, with the current consumption ranging between 0.3-0.8A. Despite these slight variations, the motor maintains a torque output of 19-20mN.m, ensuring consistent performance.

This motor's robust design and reliable operation make it ideal for applications requiring precise control and sustained torque. It is for robotics, conveyor systems, and small machinery where consistent speed and torque are critical. The wide operating voltage and current range offer flexibility, making it compatible with various electronic controllers and power supplies.

The 6W Brush DC Gear Motor is a powerful and adaptable choice, delivering dependable performance and efficiency for demanding tasks.

6 W Motor Performance Parameters

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush?Life	Motor?Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush?Life	Motor?Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
S2D06-12□	12	6	3200	0.6 Max.	2950	19	0.8	2000	0.6
S2DW06-12□	12	6	3200	0.6 Max.	2950	19	0.8	2000	0.6
S2D06-24□	24	6	3200	0.3 Max.	2950	19	0.5	2000	0.6
S2DW06-24□	24	6	3200	0.3 Max.	2950	19	0.5	2000	0.6
S2D06-90□	90	6	3000	0.2 Max.	2800	20	0.3	2000	0.6
S2DW06-90□	90	6	3000	0.2 Max.	2800	20	0.3	2000	0.6

10W Motor Performance Parameters

Model	Voltage	Power	No-load Parameters		Load?Parameters			Brush?Life	Motor?Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush?Life	Motor?Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
S2D10-12□	12	10	3200	1.0 Max.	2800	34	2.0	2000	0.7
S2DW10-12□	12	10	3200	1.0 Max.	2800	34	2.0	2000	0.7
S2D10-24□	24	10	3300	0.5 Max.	3000	32	0.9	2000	0.7
S2DW10-24□	24	10	3300	05 Max	3000	32	0.9	2000	0.7
S2D10-90□	90	10	3200	0.3 Max.	2800	34	0.6	2000	0.7
S2DW10-90□	90	10	3200	0.3 Max.	2800	34	0.6	2000	0.7

15W Motor Performance Parameters

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush?Life	Motor?Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush?Life	Motor?Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
S2D15-12□	12	15	3200	08 Max	2950	48	2.0	2000	0.9
S2DW15-12□	12	15	3200	0.8 Max.	2950	48	2.0	2000	0.9
S2D15-24□	24	15	3300	0.4 Max.	3000	48	1.0	2000	0.9
S2DW15-24□	24	15	3300	0.4 Max.	3000	48	1.0	2000	0.9
S2D15-90□	90	15	3200	0.2 Max.	3000	48	0.4	2000	0.9
S2DW15-90□	90	15	3200	0.2 Max.	3000	48	0.4	2000	0.9

Motor voltage, power and speed will be customized according to his request under the allowed circumstance of adoptable dimension.

Weuse Water Din the mode toexpressthe externalbush motor,such as z2DW06-12GN.now, it means the standard internal motor For the external brush motor you can replace the brush directly. For internal ones, we need to disassemble the engine.

Allowance Torque Unit:Upside(N.m) / Belowside(kgf.cm)

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
S2D06-24GN	Speed r/min	983	819	590	492	393	328	295	236	197	164	148	118	98	82	74	59	49	39	33	30	25	20	16	15
	2GN□K	0.05	0.06	0.08	0.09	0.12	0.14	0.16	0.20	0.24	0.28	0.28	0.35	0.42	0.51	0.57	0.71	0.76	0.96	1.15	1.27	1.53	1.91	2.29	2.55
	2GN□K	0.46	0.56	0.77	0.93	1.16	1.39	1.54	1.93	2.31	2.78	2.78	3.47	4.16	5.00	5.55	6.94	7.49	9.37	11.2	12.5	15.0	18.7	22.5	25.0
S2D10-24GN	Speed r/min	1000	833	600	500	400	333	300	240	200	167	150	120	100	83	75	60	50	40	33	30	25	20	17	15
	2GN□K	0.08	0.09	0.13	0.15	0.19	0.23	0.26	0.32	0.39	0.46	0.46	0.58	0.70	0.84	0.93	1.16	1.25	1.75	1.88	2.09	2.51	3.00	3.00	3.00
	2GN□K	0.76	0.91	1.26	1.52	1.90	2.27	2.53	3.16	3.79	4.55	4.55	5.69	6.82	8.19	9.10	11.4	12.3	15.4	18.4	20.5	24.6	30.0	30.0	30.0
S2D15-24GN	Speed r/min	1000	833	600	500	400	333	300	240	200	167	150	120	100	83	75	60	50	40	33	30	25	20	17	15
	2GN□K	0.12	0.14	0.19	0.23	0.29	0.35	0.39	0.48	0.58	0.70	0.70	0.87	1.04	1.25	1.39	1.74	1.88	2.35	2.82	3.00	3.00	3.00	3.00	3.00
	2GN□K	1.14	1.36	1.90	2.27	2.84	3.41	3.79	4.74	5.69	6.82	6.82	8.53	10.23	12.28	13.65	17.1	18.4	23.0	27.6	30.0	30.0	30.0	30.0	30.0

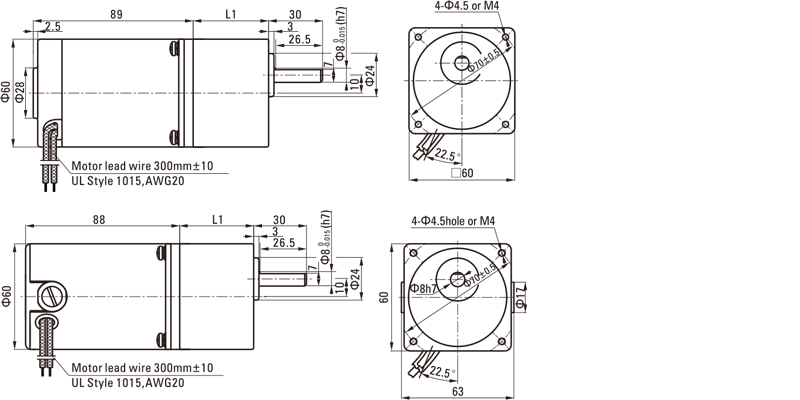

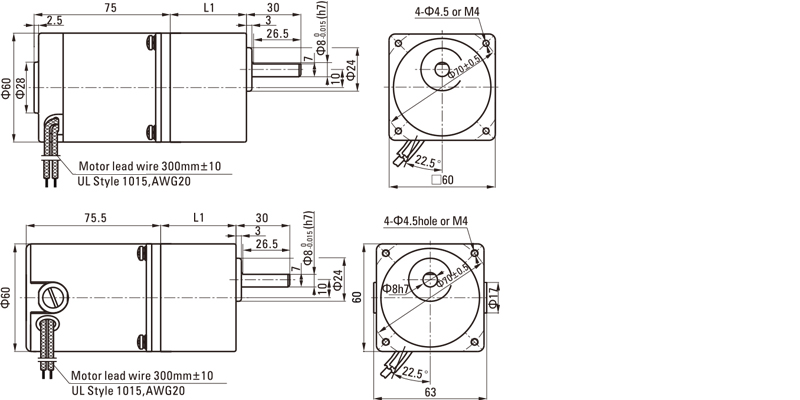

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

6W:Weight: Motor:0.6kg / Gearhead:0.4kg | 10W:Weight: Motor:0.7kg / Gearhead:0.4kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape is the same as that of the pinion shaft type.

Lead Wiring Type

15W:Weight:Motor:0.9kg / Gearhead : 0.4kg

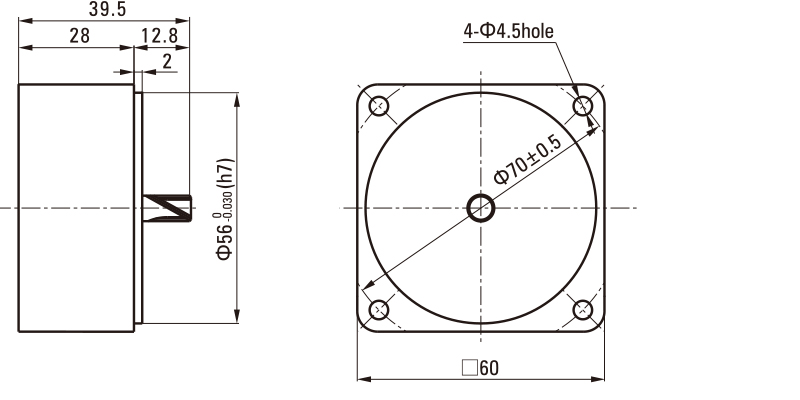

Decimal Gearhead

Can be connected to GN pinion shaft type.

Gearhead?Model	Gear Ratio	L1
2GN□K	3～18	32
2GN□K	25～200	41

Enter the gear ratio in the box(□)within the model name.
